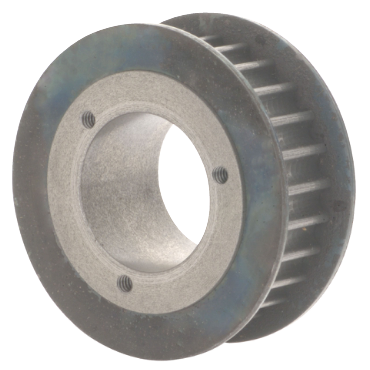

Dodge P388M30SH High Torque Drive Sprocket

Product Description

The Dodge P388M30SH is a high torque drive sprocket designed for various industrial applications. This sprocket features an eight millimeter belt pitch and a thirty millimeter belt width, making it versatile for different uses. It has thirty-eight teeth and an outside diameter of three point seven five six inches. The SH bushing is required with a bore range from half an inch to one and five eighths inches.

• Applications in agitators, mixers, and conveyors.
• Quiet operation with low maintenance requirements.
• Corrosion-resistant and abrasion-resistant materials.

Product Highlights

This sprocket offers a positive drive with no slip and no lubrication required, making it easy to operate while minimizing maintenance. Its compact design also facilitates installation in tight spaces.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946270

Technical Specifications

• Outside Diameter: 3.756 in
• Belt Width: 30 mm
• Bore Range [Max]: 1.625 in
• Bore Range [Min]: 0.5 in
• Bushing Series: SH
• Sprocket Width: 1.5 in
• Belt Pitch: 8 mm
• No. of Teeth: 38
• Weight: 2.29 LB
• EAN or UPC: 782475265671
