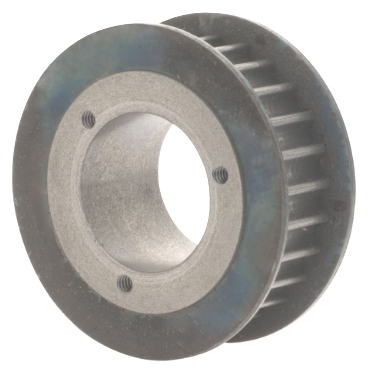

Dodge P348M30SH High Torque Drive Sprocket

Product Description

The Dodge P348M30SH is a high torque drive sprocket designed for reliable performance across various applications. This sprocket features eight millimeters of belt pitch, a thirty millimeter belt width, and thirty-four teeth, ensuring a precise fit for demanding machinery. The outside diameter measures three point three five five inches, compatible with SH bushings featuring a bore range from one half inch to one and five eighths inch.

• 8 mm belt pitch
• 30 mm belt width
• 34 teeth

Product Highlights

This sprocket is ideal for use in agitators, mixers, brick and clay machinery, compressors, conveyors, blowers, laundry machinery, machine tools, and paper machinery.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946268

Technical Specifications

• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 1.625 inches
• No. of Teeth: 34
• Belt Width: 30 mm
• Bushing Type: QD
• Outside Diameter: 3.355 inches
• Bushing Series: SH
• Pitch Diameter: 3.409 inches
• Sprocket Width: 1.5 inches
• Weight: 2.4 lb
• EAN or UPC: 782475265442
