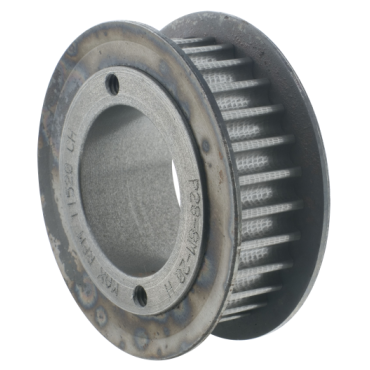

Dodge P328M30H High Torque Drive Sprocket

Product Description

The Dodge P328M30H is a high torque drive sprocket designed for various industrial applications. This sprocket features an eight mm belt pitch and a thirty mm belt width with thirty-two teeth. It has an outside diameter of 3.156 inches and requires an H bushing with a bore range of three-eighths to one and three-sixteenths inches.

• Applications include agitators, mixers, and conveyors
• Corrosion-resistant and abrasion-resistant design
• Easy installation with positive drive, no lubrication needed

Product Highlights

This high torque drive sprocket is suitable for equipment such as blowers, laundry machinery, and machine tools. Its compact and quiet operation makes it ideal for a variety of environments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946267

Technical Specifications

• Outside Diameter: 3.156 inches
• Weight: 2.14 lbs
• Type: E1F
• Belt Width: 30 mm
• Number of Teeth: 32
• Bushing Type: Split Taper
• Belt Pitch: 8 mm
• Bore Range [Min]: 0.375 inches
• Bore Range [Max]: 1.1875 inches
