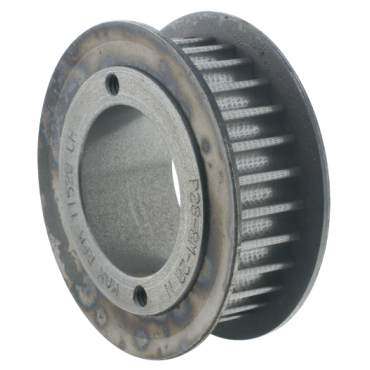

Dodge P308M30H High Torque Drive Sprocket

Product Description

The Dodge P308M30H is a high torque drive sprocket designed for various applications, including mixers, conveyors, and compressors. This drive sprocket features a belt pitch of eight millimeters and a width of thirty millimeters, making it efficient for demanding machinery. The sprocket has thirty teeth, a pitch diameter of three point zero zero eight inches, and an outside diameter of two point nine five eight inches.

• Applications: agitators, blowers, laundry machinery
• Requires H bushing with bore range between three eighths and one and three sixteenths inches.
• Durable and robust design ensures long-lasting performance.

Product Highlights

This sprocket offers quiet operation and positive drive with no slip. It requires no lubrication, making it low maintenance and resistant to corrosion and abrasion.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946266

Technical Specifications

• Belt Pitch: 8 mm
• Belt Width: 30 mm
• No. of Teeth: 30
• Outside Diameter: 2.958 inches
• Pitch Diameter: 3.008 inches
• Bore Range [Min]: 0.375 inches
• Bore Range [Max]: 1.1875 inches
• Sprocket Width: 1.5 inches
• Bushing Type: Split Taper
