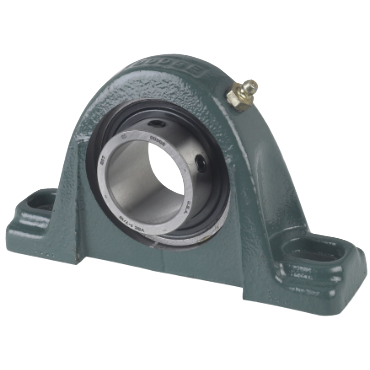

Dodge P2BVSCU104S Pillow Block Ball Bearing Unit - 2-Bolt Base - 1-1/4 in Bore

Product Description

Dodge P2BVSCU104S is a pillow block ball bearing unit designed for various industrial applications. This particular unit features a two-bolt base, making it easy to install and secure. The bore diameter measures one and one-quarter inches, and it is built from cast iron material for strength and durability.

• Maximum speed rating of four thousand five hundred rpm
• Single-lip contact sealing type for added protection
• Set screw locking device for secure attachment

Product Highlights

The Dodge P2BVSCU104S provides reliability in demanding environments. It is designed to handle significant loads while ensuring smooth operation.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• Bore Diameter: 1-1/4 in
• Bore Length: 1.3 in
• Lubrication: Grease
• Maximum Speed: 4500 rpm
• Housing Type: Two-Bolt Pillow Block
• Sealing Type: Single-Lip Contact
• Product Type: Pillow Block Ball Bearing Units
• Locking Device: Set Screw
• Insert Material: Steel
• Housing Material: Cast Iron
• Radial Static Load Capacity: 2538 lbf
• Radial Dynamic Load Capacity: 4368 lbf
• Relubricatable: Yes
• Expansion Type: Non-Expansion Bearing (Fixed)
