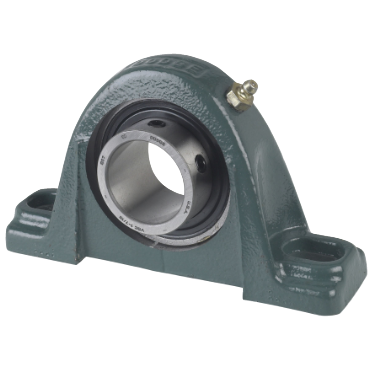

Dodge P2BVSCU103 Pillow Block Ball Bearing Unit - 2-Bolt Base - 1-3/16 in Bore - 123604

Product Description

The Dodge P2BVSCU103 is a pillow block ball bearing unit with a two-bolt base and a bore diameter of one and three-sixteenths inches. It is designed for fixed applications where non-expansion is required. This unit is constructed from cast iron for durability and has a solid housing construction.

• Bore Diameter: 1-3/16 inches
• Relubricatable: Yes
• Locking Device: Set Screw

Product Highlights

This bearing unit is suitable for a wide range of applications, delivering reliable performance and ease of installation.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• Product Type: Pillow Block Ball Bearing Units
• Bearing Series: 206 Series
• Mounting Type: 2-Bolt Base
• Sealing Type: Single-Lip Contact
• Insert Material: Steel
• Lubrication: Grease
• Grease Type: Unirex N2
• Shaft Attachment: Setscrew
• Housing Material: Cast Iron
• Base to Bore Centerline: 1.6800 inches
• Bolt Center to Center Length: 4.2500 to 5.0000 inches
• Expansion Type: Non-Expansion Bearing (Fixed)
• Standoff Included: No
• Suitable for High Temp App: No
• Suitable for Washdown Environment: No
