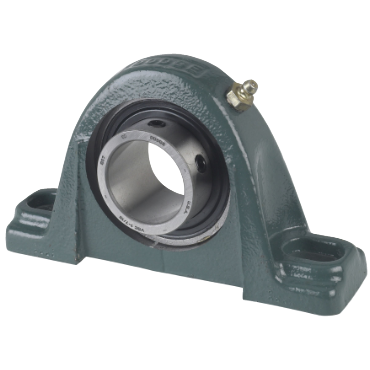

Dodge P2BVSCB107 Pillow Block Ball Bearing Unit 2-Bolt Base 1-7/16 in Bore Replacement MPN

Product Description

The Dodge P2BVSCB107 is a pillow block ball bearing unit designed for use in various industrial applications. The unit features a 1-7/16 inch bore and a two-bolt base for secure mounting. It is constructed from cast iron material, ensuring durability and reliability under operational stress.

• Bore diameter of one and seven-sixteenths inches
• Mounting type is two-bolt base
• Suitable for fixed applications with a non-expansion bearing design

Product Highlights

This bearing unit is ideal for use in machinery that requires efficient rotational movement. The unit's single-lip contact sealing type prevents dirt and debris from entering, extending the life of the bearing. It has a maximum speed rating of three thousand five hundred RPM, making it suitable for a variety of mechanical systems.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: P2BVSCB107
• Bore Diameter: 1-7/16 inches
• Bore Length: 1.71 inches
• Maximum Speed: 3500 RPM
• Lubrication: Grease
• Sealing Type: Single-Lip Contact
• Radial Dynamic Load Capacity: 5759 lbf
• Radial Static Load Capacity: 3461 lbf
• Locking Device: Set Screw
• Housing Material: Cast Iron
• Insert Material: Steel
• Bearing Series: 207 Series
