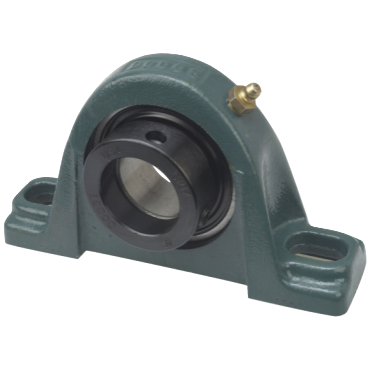

Dodge P2BSXVB014 Pillow Block Ball Bearing Unit - 2-Bolt Base, 7/8 In Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)

Product Description

The Dodge P2BSXVB014 is a Pillow Block Ball Bearing Unit designed for robust applications. This unit features a durable cast iron housing and is ideal for various mounting setups, particularly with a two-bolt base. It offers a bore diameter of seven-eighths of an inch, making it suitable for standard shaft sizes. It is a non-expansion bearing, providing fixed positioning and stability. The bearing is engineered to handle high loads, making it suitable for demanding industrial environments.

• Two-bolt mounting design for easy installation
• Fixed non-expansion bearing type for stability
• Suitable for various machinery applications

Product Highlights

This bearing unit is built for reliability and efficiency in high-speed operations.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• MPN: P2BSXVB014
• Bore Diameter: 7/8 in
• Bore Length: 1.22 in
• Maximum Speed: 4500 rpm
• Housing Type: Two-Bolt Pillow Block
• Locking Device: Eccentric Collar
• Lubrication: Grease
• Insert Material: Steel
• Radial Static Load Capacity: 1769 lbf
• Radial Dynamic Load Capacity: 3146 lbf
