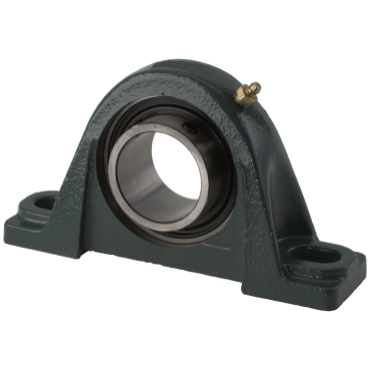

Dodge P2BSCM65M Pillow Block Ball Bearing Unit - 2-Bolt Base, 65 mm Bore - 125932

Product Description

The Dodge P2BSCM65M is a pillow block ball bearing unit designed for heavy-duty applications. It features a two-bolt base for secure mounting and has a bore diameter of sixty-five millimeters. The unit is made from cast iron, providing strength and stability. It is suitable for fixed applications and is ideal for various industrial settings.

• 65 mm bore diameter
• Maximum speed of 2000 rpm
• Radial dynamic load capacity of 13995 lbf

Product Highlights

The P2BSCM65M is designed for reliability and performance in demanding environments.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: P2BSCM65M
• Bore Diameter: 65 mm
• Bore Length: 2.54 in
• Housing Material: Cast Iron
• Mounting Type: 2-Bolt Base
• Sealing Type: Single-Lip Contact
• Lubrication: Grease
• Insert Material: Steel
• Radial Static Load Capacity: 9838 lbf
• Expansion Type: Non-Expansion Bearing (Fixed)
• Locking Device: Set Screw
• Relubricatable: Yes
• Maximum Speed: 2000 rpm
• Bolt Center To Center Length: 7.5000 to 8.5000 in
• Base To Bore Centerline: 3.0000 in
• Standoff Included: No
