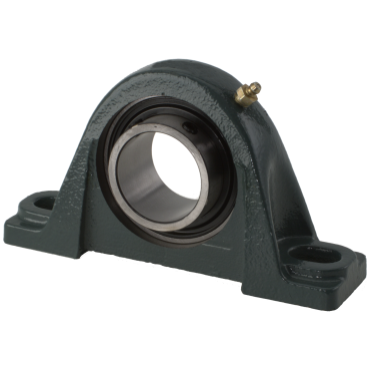

Dodge P2BSC70M Pillow Block Ball Bearing Unit - 70 mm Bore - 2-Bolt Base

Product Description

The Dodge P2BSC70M is a pillow block ball bearing unit designed for robust applications. It features a two-bolt base and a bore diameter of seventy millimeters, ensuring secure installation and reliable performance. The cast iron housing offers durability in various environments, while the grease lubrication system helps maintain smooth operation.

• 70 mm bore diameter
• Maximum speed of 2000 rpm
• Non-expansion bearing type (fixed)

Product Highlights

This bearing unit is suitable for various industrial applications, particularly where space is limited. Its solid housing construction and set screw shaft attachment provide stability for the mounted bearing.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• Bore Length: 2.54 inches
• Lubrication: Grease
• Mounting Type: 2-Bolt Base
• Insert Material: Steel
• Maximum Speed: 2000 rpm
• Radial Dynamic Load Capacity: 13995 lbf
• Radial Static Load Capacity: 9838 lbf
• Locking Device: Set Screw
