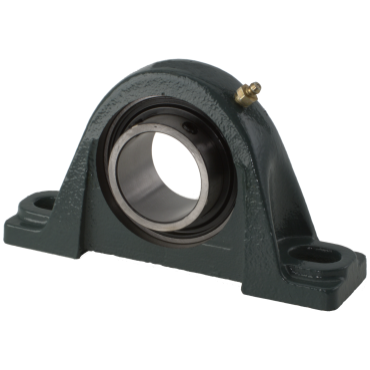

Dodge P2BSC110L Pillow Block Ball Bearing Unit - 2-Bolt Base - 1-5/8 In Bore - 125169

Product Description

The Dodge P2BSC110L is a pillow block ball bearing unit designed for efficient load support and rotation. This unit features a two-bolt base and is made of cast iron, providing durability and strength. With a bore diameter of one and five-eighths inches, it is ideal for various applications in industrial settings.

• 1-5/8 inch bore diameter
• Non-expansion bearing type
• Maximum speed of 300 rpm

Product Highlights

This pillow block bearing unit is suitable for fixed applications. It is designed for use in industries requiring reliable and sturdy solutions for rotational needs.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: P2B-SC-110L
• Housing Material: Cast Iron
• Insert Material: Steel
• Bearing Series: 209 Series
• Sealing Type: Single-Lip Contact
• Locking Device: Set Screw
• Radial Static Load Capacity: 4906 lbf
• Radial Dynamic Load Capacity: 7891 lbf
