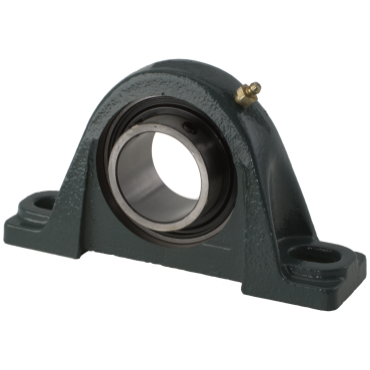

Dodge P2BSC008L Pillow Block Ball Bearing Unit - 2-Bolt Base - 1/2 in Bore

Product Description

The Dodge P2BSC008L is a pillow block ball bearing unit designed for reliable performance. This unit features a two-bolt base, making it easy to install and maintain. With a bore diameter of one half inch, it fits many common applications. The unit is made from durable cast iron to withstand harsh conditions.

• Bore length: 1.23 inches
• Maximum speed: 5000 RPM
• Load capacity: 1482 lbf static

Product Highlights

This pillow block bearing unit is designed to support high axial loads with minimal wear. It features a single-lip contact sealing type to keep lubricant contained and contaminants out.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• MPN: P2BSC008L
• Bore Diameter: 1/2 inch
• Housing Material: Cast Iron
• Lubrication: Grease
• Insert Material: Steel
• Ball Bearing Type: Non-Expansion Bearing (Fixed)
• Radial Dynamic Load Capacity: 2899 lbf
• Mounting Type: 2-Bolt Base
