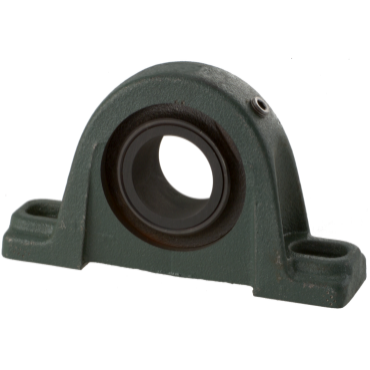

Dodge P2BLT7215 2 Bolt Pillow Block Plain Sleeve Bearing - 2-15/16 in Bore, Cast Iron Material, Expansion Bearing (Floating)

Product Description

The Dodge P2BLT7215 is a 2 Bolt Pillow Block Plain Sleeve Bearing designed for robust applications. This bearing features a bore diameter of two and fifteen-sixteenths inches and is made from cast iron for durability. The self-lubricated graphite insert enhances performance and reduces maintenance needs. The expansion type is a floating bearing, making it suitable for various mounting applications.

• Bore Diameter: 2-15/16 inches
• Housing Material: Cast Iron
• Type: Expansion Bearing (Floating)

Product Highlights

This bearing is ideal for high temperature applications due to its sturdy construction and solid housing design.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• Weight: 17.8 lbs
• Bore Length: 11.75 inches
• Lubrication: Self Lubricated
• Housing Type: Two-Bolt Pillow Block
• Insert Material: Graphite
• Type of Bearing: Journal
• Take Up Frame Size: LD-50, TS-350
• Base to Bore Centerline: 3.5 inches
