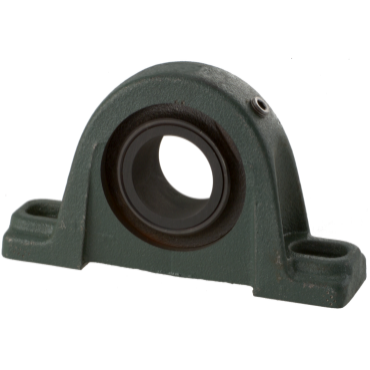

Dodge P2BLT7208 2 Bolt Pillow Block Plain Sleeve Bearing - 2-1/2 in Bore, Cast Iron Material, Expansion Bearing (Floating)

Product Description

The Dodge P2BLT7208 is a two-bolt pillow block plain sleeve bearing designed for robust performance in various applications. This bearing features a bore diameter of two and one-half inches and is made from durable cast iron. It includes a graphite insert and is suitable for high-temperature environments, making it an excellent choice for industrial settings.

• Self-lubricated design for reduced maintenance.
• Expansion bearing type allows for thermal expansion.
• Solid housing construction for enhanced durability.

Product Highlights

This bearing unit is designed for easy installation and reliable operation in demanding conditions.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States
• Minimum Order Quantity: 1

Technical Specifications

• Weight: 9.5 lbs
• Bore Diameter: 2-1/2 in
• Bore Length: 9.5 inch
• Housing Type: Two-Bolt Pillow Block
• Insert Material: Graphite
• Type of Bearing: Journal
• Housing Material: Cast Iron
• Base To Bore Centerline: 2.7500 in
• Suitable For High Temp Applications: Yes
• Expansion Type: Expansion Bearing (Floating)
• Bolt Center To Center Length: 6.8800 to 7.9400 in
