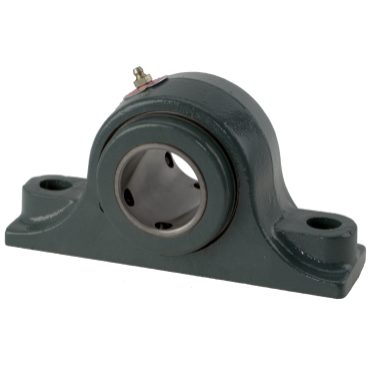

Dodge P2BE114R Pillow Block Roller Bearing Unit - 1-7/8 in Bore Dia. - Non-Expansion Bearing (Fixed)

Product Description

The Dodge P2BE114R is a pillow block roller bearing unit designed for reliable operation in various industrial applications. It features a bore diameter of one and seven-eighths inches and is built from solid cast iron. This bearing is a non-expansion type, allowing for fixed positioning and reducing the risk of misalignment. It includes a tapered roller construction for improved load handling.

• Durable cast iron housing
• Triple-lip contact sealing for enhanced protection
• Maximum speed rating of 3050 rpm

Product Highlights

This bearing is suitable for heavy-duty applications requiring robust support. The unit's grease lubrication system, specifically using MobilGrease XHP222, ensures longevity in demanding operating conditions.

Product Information

Standard Information

• Brand: Dodge
• MPN: P2BE114R

Technical Specifications

• Bore Diameter: 1-7/8 in
• Length: 9.2 in
• Width: 3.9 in
• Height: 5.4 in
• Weight: 10.8 lb
• Housing Material: Cast Iron
• Sealing Type: Triple-Lip Contact
• Radial Dynamic Load Capacity: 9300 lbf
• Radial Static Load Capacity: 43000 lbf
• Maximum Speed: 3050 rpm
• Lubrication: Grease
• Insert Material: Steel
• Expansion Type: Non-Expansion Bearing (Fixed)
• Locking Device: Set Screw
• Type of Bearing: Tapered Roller
• Country of Origin: US
