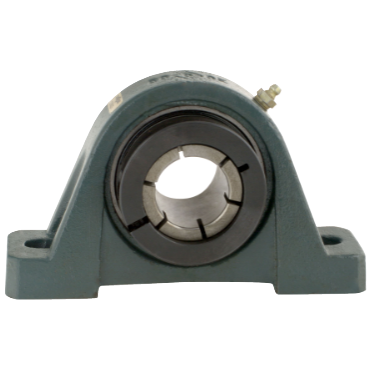

Dodge P2BDLM215 Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2BDLM215 is a cast iron housing ball bearing designed for mounting with two bolts. It features solid construction and is suitable for various applications in industrial settings. This pillow block unit provides reliable support for rotating shafts while minimizing friction.

• Constructed with durable cast iron material.
• Two-bolt mounting for secure installation.
• Compatible with standard shaft diameters.

Product Highlights

The unit is designed for ease of maintenance with a grease lubrication system and has a fixed expansion capability.

Product Information

Standard Information

• Brand: Dodge
• MPN: P2BDLM215

Technical Specifications

• Lubrication: Grease
• Static Load Capacity: 13102 lbf
• Insert Material: Steel
• Housing Material: Cast Iron
• Dynamic Load Capacity: 17407 lbf
• Shaft Diameter: 2.938 in
• Base to Center Height: 3.5 in
• Bore Length: 2.38 in
• No. of Bolts: 2
• Speed (Max): 2500 rpm
• Take-Up Frame Size: LD-50, TS-400
