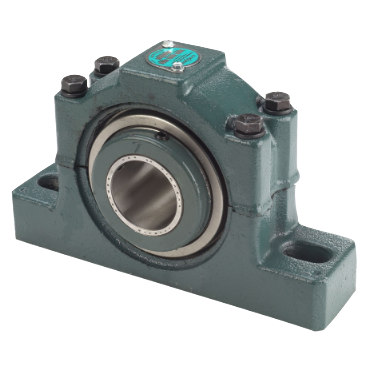

Dodge P2BDI300R Pillow Block Roller Bearing Unit - 3 in Bore Dia. - Non-Expansion Bearing (Fixed)

Product Description

The Dodge P2BDI300R is a pillow block roller bearing unit designed for high reliability in various applications. This unit features a three-inch bore diameter and is made from durable cast iron. The non-expansion bearing type ensures fixed mounting and stability during operation.

• Housing Type: Two-Bolt Pillow Block
• Maximum Speed: 2060 RPM
• Sealing Type: Triple-Lip Contact

Product Highlights

The Dodge P2BDI300R is ideal for use in demanding environments where consistent performance is key. It supports high radial loads and offers a secure shaft attachment through setscrew mechanisms.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: P2BDI300R
• Bore Diameter: 3 in
• Housing Material: Cast Iron
• Insert Material: Steel
• Locking Device: Set Screw
• Mounting Type: 2-Bolt Base
• Radial Static Load Capacity: 61200 lbf
• Radial Dynamic Load Capacity: 11120 lbf
• Expansion Type: Non-Expansion Bearing (Fixed)
• Base To Bore Centerline: 3.7500 in
• Bolt Center-to-Center Length: 9.8800 to 11.5000 in
• Maximum Speed: 2060 RPM
• Sensor Ready: Yes
