Dodge P2BBO100 Stamped Steel Housing Journal Bearing 2 Bolts Pillow Block

Product Description

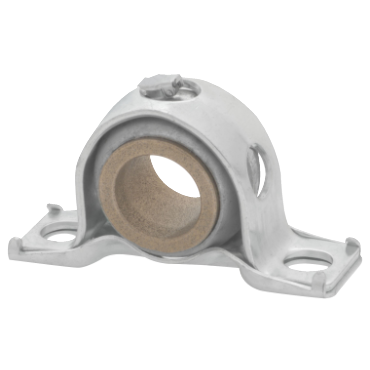

The Dodge P2BBO100 is a stamped steel housing journal bearing designed for two bolts in a pillow block configuration. This product is suited for light machinery applications, offering several key features for efficiency and reliability.

• Self-oiling bushing that feeds oil to the shaft
• Split pressed steel housing enhances durability
• Static self-aligning design allows easy installation

Product Highlights

This bearing provides effective lubrication and is ideal for various light machinery tasks.

Product Information

Standard Information

• Brand: Dodge
• MPN: P2BBO100

Technical Specifications

• Bearing Type: Journal
• Bolt Hole Length: 9/16 inches
• Pillow Block Type: Thru-Bolt
• Shaft Diameter: 1 inch
• Mounted Unit Duty: Normal-Duty
• Housing Material: Stamped Steel
• Base Height: 5/32 inches
• Greasable: No
• Insert Material: Bronze
• Seal Type: Unsealed
• Locking Device: No Locking Device
• Housing Construction: Solid
• Base to Center Height: 1.063 inches
• Housing Height: 2 5/16 inches
• Bolt Hole Spacing: 3 inches
• Bolt Holes: 2
• No. of Bolts: 2
• Bearing Design: Non-Expansion
• Base Width: 1 3/16 inches
• Expansion Capability: Float
• Base Length: 4 inches
• End Type: Open End
• Lubrication: Oil
• Length Through Bore: 1.125 inches
• Weight: 0.44 pounds
• EAN or UPC: 782475730759
