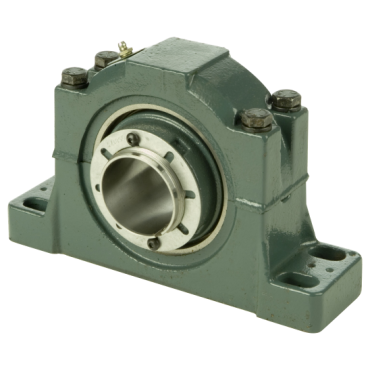

Dodge P2B520-ISAF-307R Pillow Block Roller Bearing Unit - 3-7/16 in Bore Dia. - Non-Expansion Bearing (Fixed)

Product Description

The Dodge P2B520-ISAF-307R is a pillow block roller bearing unit designed for a bore diameter of three and seven-sixteenths inches. This bearing is constructed from cast iron, which provides durability and reliability. It is a non-expansion bearing, fixed type, ideal for applications requiring stability.

• Bore Diameter: 3-7/16 in
• Weight: 63 lbs
• Sealing Type: Triple-Lip Contact

Product Highlights

This bearing unit is suitable for various industrial applications, ensuring smooth operation and minimal maintenance. The Dodge P2B520-ISAF-307R features a steel insert material and operates with grease lubrication, specifically utilizing MobilGrease XHP222.

Product Information

Standard Information

• Country of Origin: United States
• Minimum Order Quantity: 1

Technical Specifications

• Type of Bearing: Spherical Roller
• Expansion Type: Non-Expansion Bearing (Fixed)
• Housing Material: Cast Iron
• Locking Device: Adapter Mounted
• Shaft Attachment: Push-Pull Adapter
• Bore Length: 4.16 in
• Grease Type: MobilGrease XHP222
• Base to Bore Centerline: 4.5 in
