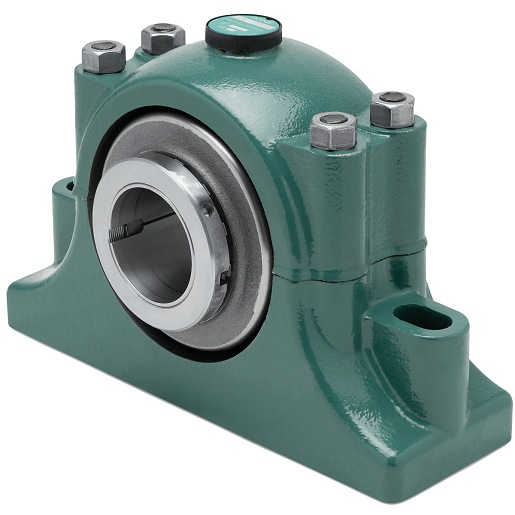

Dodge P2B-SD-207E SPECIAL DUTY | Cast Iron Housing Tapered Roller Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SD-207E SPECIAL DUTY is a tapered roller bearing designed for reliable performance in various applications. It features a cast iron housing with two bolt mounting for stability.

• Two bolts for secure installation
• Split housing construction for easy maintenance
• Steel insert for durability

Product Highlights

This bearing is suitable for various industrial applications, offering grease lubrication and a maximum speed of 2000 rpm.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 112005692

Technical Specifications

• Lubrication: Grease
• No. of Bolts: 2
• Base to Center Height: 4 inches
• Shaft Diameter: 2.438 inches
• Bearing Type: Tapered Roller Bearing
• Greasable: Yes
• Shaft Attachment: Tapered Adapter
• Grease Name: MobilGrease XHP222
• Housing Material: Cast Iron
• Maximum Speed: 2000 rpm
• Bolt Diameter: 0.75 inches
• Housing Construction: Split
• Take-Up Frame Size: HD-250
• Bore Length: 5.06 inches
• Bolt to Bolt (Max): 11.5 inches
• Insert Material: Steel
• Expansion Capability: Float
• Bolt to Bolt (Min): 10 inches
• Weight: 61.0 LB
• EAN or UPC: 782475036080
