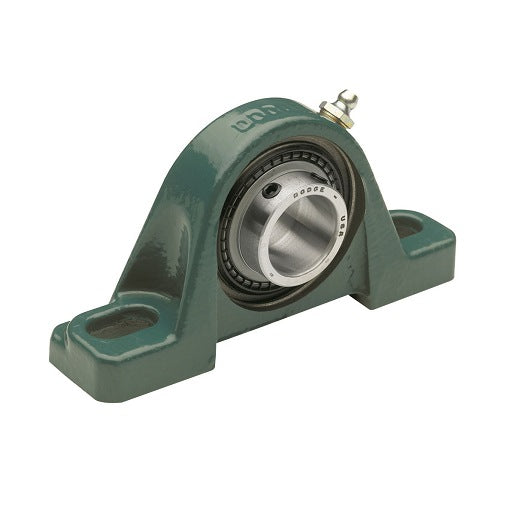

Dodge P2B-SCMU-100 Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SCMU-100 is a durable ball bearing unit designed for various applications. This pillow block bearing features a cast iron housing and solid construction to ensure reliability and stability. It is an effective solution for mounting and supporting rotating shafts.

• Constructed of cast iron for durability
• Utilizes a 1-inch shaft diameter
• Fixed expansion capability

Product Highlights

Ideal for industrial tasks where sturdy support is required.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P2B-SCMU-100

Technical Specifications

• Bearing Type: Ball Bearing
• Housing Construction: Solid
• Shaft Attachment: Setscrew
• Grease Name: Unirex N2
• Base to Center Height: 1.63 inches
• Expansion Capability: Fixed
• Shaft Diameter: 1 inch
• Bolt to Bolt Minimum: 4.25 inches
• Take-Up Frame Size: LD-20, TS-250
• Housing Material: Cast Iron
• Bore Length: 1.52 inches
• Bolt Diameter: 0.5 inches
• Insert Material: Steel
• Ball Bearing Series: 206 Series
• Standoff Housing: No
• Suitable for Washdown: No
• Sensor Ready: Adapter Required
• Suitable for High Temperature: No
• Number of Bolts: 2
• Lubrication: Grease
• Bolt to Bolt Maximum: 5 inches
• Greasable: Yes
• Weight: 2.61 pounds
• EAN or UPC: 782476038441
