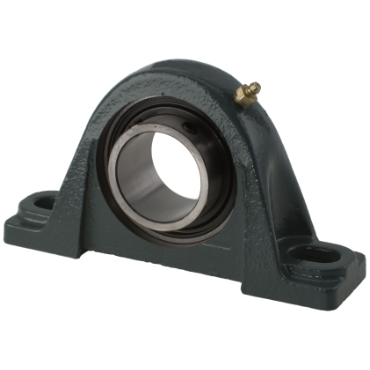

Dodge P2B-SCMED-215 Pillow Block Ball Bearing Unit 2 Bolt Base

Product Description

The Dodge P2B-SCMED-215 is a pillow block ball bearing unit designed for reliable performance in various applications. Built with a cast iron housing, this unit features a two-bolt mounting setup. It is ideal for environments where durability and strength are essential.

• Two-bolt mounting system for easy installation
• Constructed from solid cast iron for strength
• Designed with a steel insert for enhanced performance

Product Highlights

This unit is suited for projects requiring a robust solution in both industrial and commercial settings.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P2B-SCMED-215

Technical Specifications

• Grease Name: Mobilith SHC PM 220
• Bearing Type: Ball Bearing
• Static Load Capacity: 13102 lbf
• Dynamic Load Capacity: 17407 lbf
• Speed [Max]: 1500 rpm
• Bolt Diameter: 0.875 in
• Base to Center Height: 3.5 in
• Insert Material: Steel
• Housing Material: Cast Iron
• Weight: 19.0 lb
