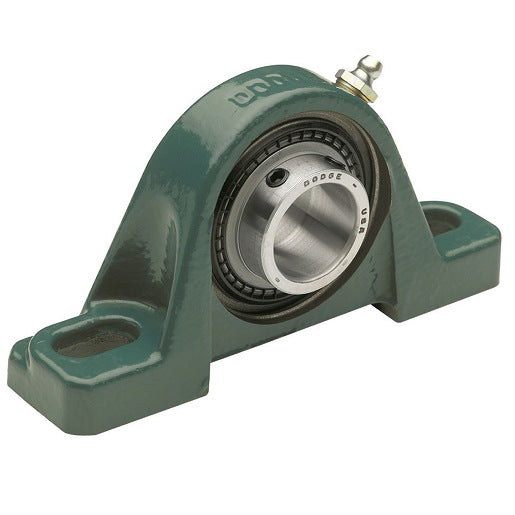

Dodge P2B-SCMED-207 Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SCMED-207 is a Cast Iron Housing Ball Bearing with a two-bolt design. This pillow block is designed to support horizontal and vertical loads while ensuring smooth operation.

• Two-bolt mounting for secure installation.
• Cast iron housing for durability.
• Steel insert material for reliable performance.

Product Highlights

The P2B-SCMED-207 is suitable for various applications in material handling and machinery.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 110018934

Technical Specifications

• Bolt to Bolt Min: 7.5 inches
• Bolt to Bolt Max: 8.5 inches
• Ball Bearing Series: 214 Series
• Greasable: Yes
• Lubrication Type: Grease
• Bolt Diameter: 0.75 inches
• Maximum Speed: 2000 rpm
• Dynamic Load Capacity: 13995 lbf
• Static Load Capacity: 9838 lbf
• Housing Material: Cast Iron
• Shaft Diameter: 2.438 inches
• Bore Length: 2.54 inches
• No. of Bolts: 2
• Shaft Attachment: Setscrew
• Base to Center Height: 3 inches
