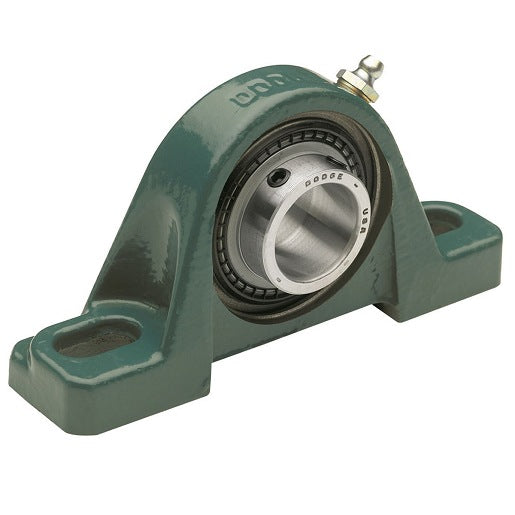

Dodge P2B-SCM-211 Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SCM-211 is a cast iron housing ball bearing unit designed for reliable support in various applications. This two-bolt pillow block bearing offers solid construction and is suitable for a range of industrial uses.

• Durable cast iron housing
• Compatible with LD-50 and TS-350 frame sizes
• Designed for easy installation with setscrew shaft attachment

Product Highlights

The P2B-SCM-211 features solid housing construction and is built to handle moderate loads. It is compatible with various mounting configurations.

Product Information

Standard Information

• Brand: Dodge
• MPN: P2B-SCM-211

Technical Specifications

• Shaft Attachment: Setscrew
• Max Speed: 1750 rpm
• Static Load Capacity: 11108 lbf
• Dynamic Load Capacity: 14872 lbf
• Base to Center Height: 3.5 in
• Bolt to Bolt (Min): 8.5 in
• Bolt to Bolt (Max): 9.5 in
• Shaft Diameter: 2.688 in
• Bore Length: 2.33 in
• Housing Material: Cast Iron
• Insert Material: Steel
• Greasable: Yes
• Weight: 18.5 lb
• EAN or UPC: 782475116386
