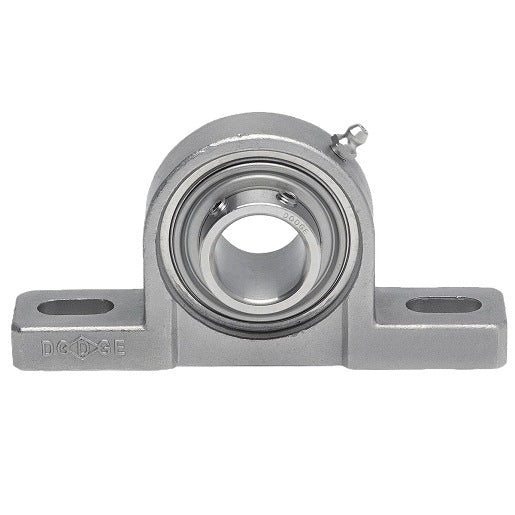

Dodge P2B-SCFS-200-SHFS | Stainless Steel Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SCFS-200-SHFS is a stainless steel housing ball bearing pillow block designed for durability and reliability in various applications. This unit features a robust two-bolt configuration that ensures secure mounting. It is suitable for washdown environments, making it ideal for use in food processing and other hygienic applications.

• Solid housing construction
• Plated stainless steel insert material
• Fits LD-30 and TS-300 frame sizes

Product Highlights

The pillow block is designed to support radial loads and is manufactured to meet high standards.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P2B-SCFS-200-SHFS

Technical Specifications

• Housing Construction: Solid
• Insert Material: Plated Stainless Steel
• Standoff Housing: No
• Housing Material: Stainless Steel
• Take-Up Frame Size: LD-30, TS-300
• Grease Name: MobilGrease FM222
• Dynamic Load Capacity: 7891 lbf
• Bolt to Bolt [Max]: 6.68 in
• No. of Bolts: 2
• Bolt Diameter: 0.625 in
• Bore Length: 1.94 in
• Speed [Max]: 450 rpm
• Shaft Attachment: Setscrew
• Expansion Capability: Fixed
• Base to Center Height: 2.25 in
• Lubrication: Grease
• Ball Bearing Series: 210 Series
• Seal Type: Triple-Lip Contact
• Weight: 5.0 LB
