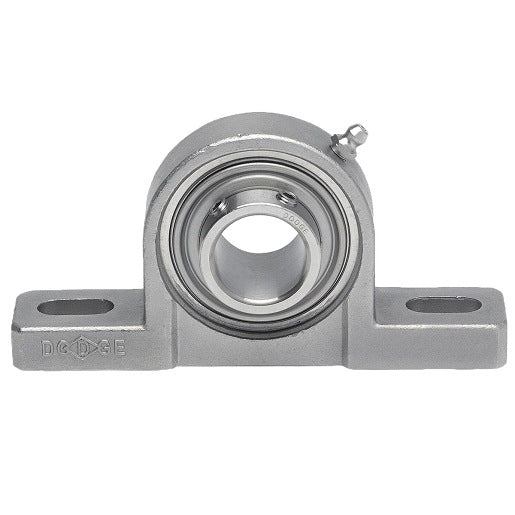

Dodge P2B-SCFS-103-SHFS Stainless Steel Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SCFS-103-SHFS is a stainless steel housing ball bearing designed for reliable performance. This two-bolt pillow block assembly offers easy installation and durability. It is ideal for various applications where strength and stability are required.

• Constructed with a solid stainless steel housing
• Compatible with non-expansion bearing setups
• Includes lubricated plated stainless steel insert material

Product Highlights

This product is suitable for washdown environments and features a triple-lip contact seal design for enhanced protection against contaminants.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P2B-SCFS-103-SHFS

Technical Specifications

• Shaft Attachment: Setscrew
• Base to Center Height: 1.63 inches
• Expansion Capability: Fixed
• Bolt to Bolt [Min]: 4.25 inches
• Greasable: No
• Dynamic Load Capacity: 4368 lbf
• Static Load Capacity: 2538 lbf
• Bearing Type: Ball Bearing
• Insert Material: Plated Stainless Steel
• Speed [Max]: 675 rpm
• Bore Length: 1.52 inches
• Suitable For Washdown: Yes
• Seal Type: Triple-Lip Contact
• Housing Material: Stainless Steel
• Bolt Diameter: 0.5 inches
• Shaft Diameter: 1.188 inches
• No. of Bolts: 2
• Weight: 2.0 lb
