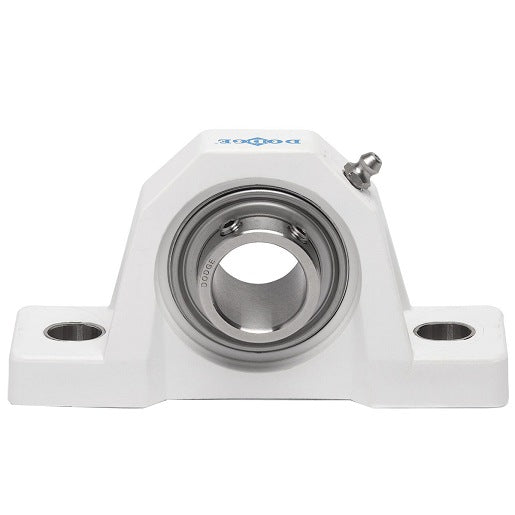

Dodge P2B-SCEZ-115-PCR-NL | Polymer Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SCEZ-115-PCR-NL is a polymer housing ball bearing unit designed for durability and ease of installation. This component features a two-bolt base and is suitable for applications that require a non-expansion bearing. Ideal for industrial settings, it offers reliable performance under various conditions.

• Made from polymer material
• Equipped with plated steel insert
• Compatible with LD-30 and TS-300 frame sizes

Product Highlights

This unit is built to last with solid housing construction and is capable of operating in washdown environments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P2B-SCEZ-115-PCR-NL

Technical Specifications

• Insert Material: Plated Steel
• Shaft Attachment: Setscrew
• Take-Up Frame Size: LD-30, TS-300
• Expansion Capability: Fixed
• Ball Bearing Series: 210 Series
• Housing Construction: Solid
• Housing Material: Polymer
• Number of Bolts: 2
• Bolt Diameter: 0.625 inches
• Bore Length: 1.94 inches
• Shaft Diameter: 1.938 inches
• Seal Type: Triple-Lip Contact
• Bearing Type: Ball Bearing
• Lubrication: Grease
• Suitable for Washdown: Yes
• Base to Center Height: 2.25 inches
• Bolt to Bolt [Max]: 6.56 inches
• Bolt to Bolt [Min]: 6 inches
• Grease Name: MobilGrease FM222
• Sensor Ready: Adapter Required
• Greasable: No
• Weight: 2.89 pounds
