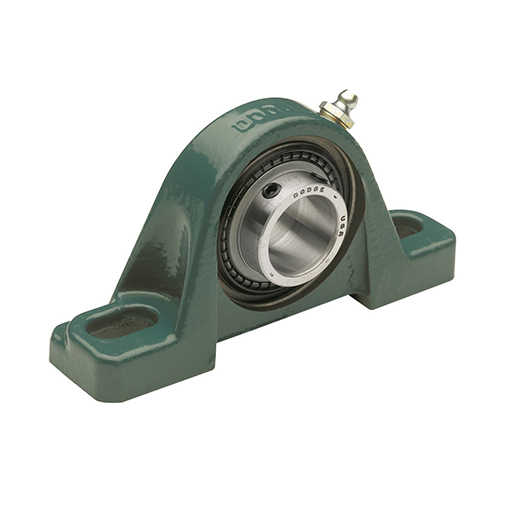

Dodge P2B-SCED-115 Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SCED-115 is a cast iron housing ball bearing unit designed with a two-bolt base. It is built to provide strong support and durability. This unit is suitable for various applications where reliable operation is essential.

• Designed for easy installation with a two-bolt mounting system.
• Constructed from durable cast iron.
• Ball bearing type providing reduced friction and improved performance.

Product Highlights

This unit stands out due to its robust construction and effective performance in various industrial applications.

Product Information

Standard Information

• Brand: Dodge
• MPN: P2B-SCED-115

Technical Specifications

• Bore Length: 1.94 in
• Grease Type: Mobilith SHC PM 220
• Housing Material: Cast Iron
• Lubrication: Grease
• Static Load Capacity: 5213 lbf
• Dynamic Load Capacity: 7891 lbf
• Number of Bolts: 2
• Speed (Max): 3000 rpm
• Shaft Attachment: Setscrew
• Expansion Capability: Fixed
• Take-Up Frame Size: LD-30, TS-300
