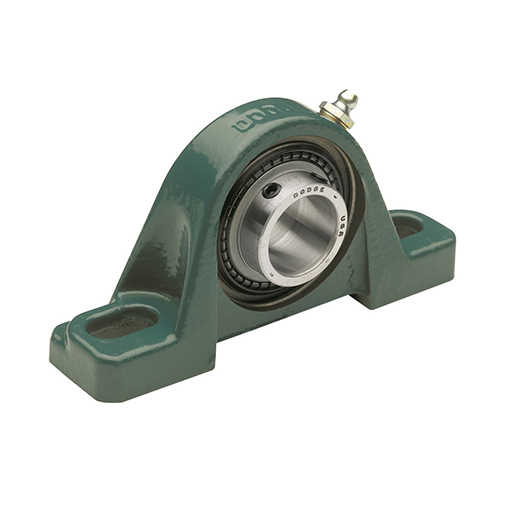

Dodge P2B-SCED-107 Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SCED-107 is a cast iron housing ball bearing unit designed for robust applications. It features a two-bolt base that ensures secure mounting, making it ideal for various industrial uses where reliability is essential.

• Ball Bearing Series 207 for versatility
• Dynamic load capacity of 5759 lbf
• Grease-lubricated for smooth operation

Product Highlights

This product is suitable for numerous applications, particularly where fixed bearing configurations are necessary. It has a maximum speed rating of 3500 rpm, making it suitable for high-performance tasks.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P2B-SCED-107

Technical Specifications

• Housing Material: Cast Iron
• Bearing Type: Ball Bearing
• Insert Material: Steel
• Lubrication: Grease
• Dynamic Load Capacity: 5759 lbf
• Static Load Capacity: 3461 lbf
• Bolt to Bolt (Min): 4.68 in
• Bolt to Bolt (Max): 5.44 in
• Shaft Diameter: 1.438 in
• Bore Length: 1.71 in
• Base to Center Height: 1.88 in
• Expansion Capability: Fixed
• Weight: 8.41 lb
