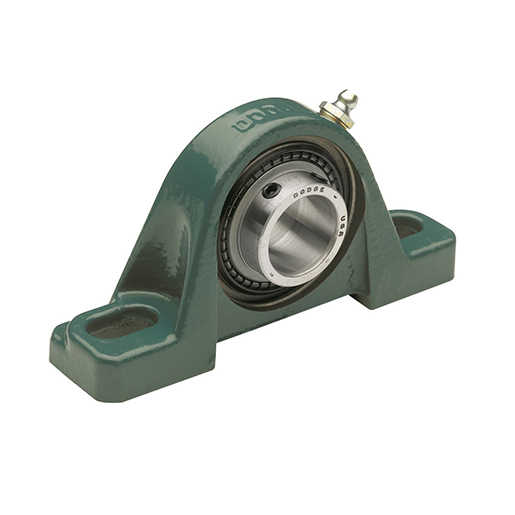

Dodge P2B-SCED-010L Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SCED-010L features a two-bolt cast iron housing pillow block designed for reliable performance. This component is ideal for applications that require a sturdy bearing unit, capable of handling both dynamic and static loads efficiently.

• Dynamic load capacity of 2899 lbf
• Constructed with solid cast iron housing
• Compatible with LD-10 and TS-100 take-up frames

Product Highlights

The P2B-SCED-010L is built for durability and ease of maintenance, utilizing grease lubrication and a setscrew shaft attachment method.

Product Information

Standard Information

• MPN: P2B-SCED-010L
• Brand: Dodge

Technical Specifications

• Dynamic Load Capacity: 2899 lbf
• Static Load Capacity: 1482 lbf
• Shaft Diameter: 0.625 in
• Base to Center Height: 1.31 in
• Bore Length: 1.23 in
• Bearing Type: Ball Bearing
• Housing Material: Cast Iron
• Insert Material: Steel
• Number of Bolts: 2
• Expansion Capability: Fixed
• Maximum Speed: 5000 rpm
• Lubrication: Grease
• Grease Name: Mobilith SHC PM 220
• Take-Up Frame Size: LD-10, TS-100
• Weight: 1.7 LB
