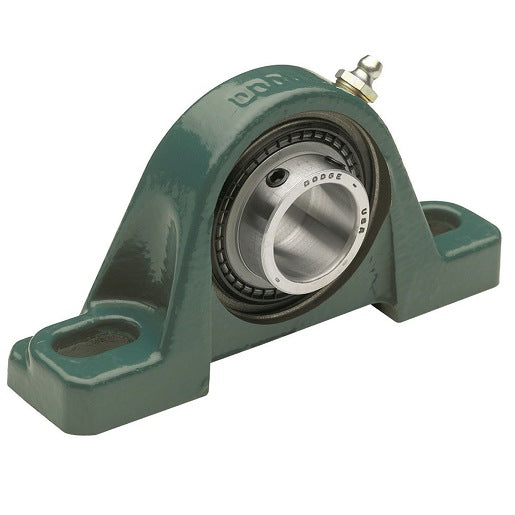

Dodge P2B-SC-40M Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SC-40M is a cast iron housing ball bearing with a 2-bolt pillow block design. This product is suitable for various applications that require solid construction and reliable performance.

• Made of durable cast iron
• Includes greasable features
• Ball bearing type with two-bolt attachment

Product Highlights

This pillow block bearing unit provides strong support and stability for rotating shafts. It is designed for easy installation and maintenance.

Product Information

Standard Information

• Product Type: Pillow Block Ball Bearing Units
• Brand: Dodge

Technical Specifications

• MPN: P2B-SC-40M
• Bore Length: 1.94 inches
• Dynamic Load Capacity: 7332 lbf
• Static Load Capacity: 4475 lbf
• Bolt to Bolt [Max]: 5.88 inches
• Bolt to Bolt [Min]: 5.18 inches
• Shaft Diameter: 40 mm
• Weight: 4.7 lb
• Insert Material: Steel
• Housing Material: Cast Iron
• Grease Name: Unirex N2
• Speed [Max]: 3500 rpm
• Number of Bolts: 2
• Mounting Type: 2-Bolt Base
