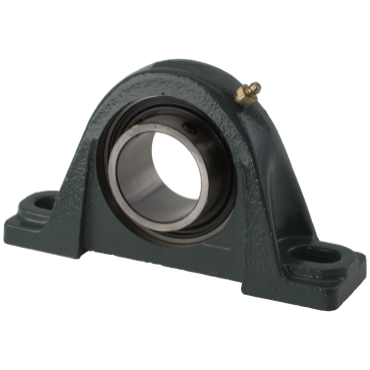

Dodge P2B-SC-200-NL Pillow Block Ball Bearing Unit - 2-Bolt Base, 2 in Bore, Cast Iron Material

Product Description

The Dodge P2B-SC-200-NL is a pillow block ball bearing unit designed for various applications. This unit has a two-bolt base and features a bore diameter of two inches. Constructed from cast iron, it is built to withstand regular use in demanding environments.

• Bore diameter: 2 inches
• Maximum speed: 3000 rpm
• Housing type: Two-bolt pillow block

Product Highlights

The fixed, non-expansion bearing is suitable for various industrial applications and provides reliable performance.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• MPN: P2B-SC-200-NL
• Housing Material: Cast Iron
• Insert Material: Steel
• Bearing Series: 210 Series
• Locking Device: Set Screw
• Lubrication: Grease
• Sealing Type: Single-Lip Contact
• Radial Static Load Capacity: 5213 lbf
• Radial Dynamic Load Capacity: 7891 lbf
• Bore Length: 1.94 inches
• Mounting Type: 2-Bolt Base
• Base To Bore Centerline: 2.25 inches
• Standoff Included: No
• Expansion Type: Non-Expansion Bearing (Fixed)
• Relubricatable: No
• Maximum Speed: 3000 rpm
