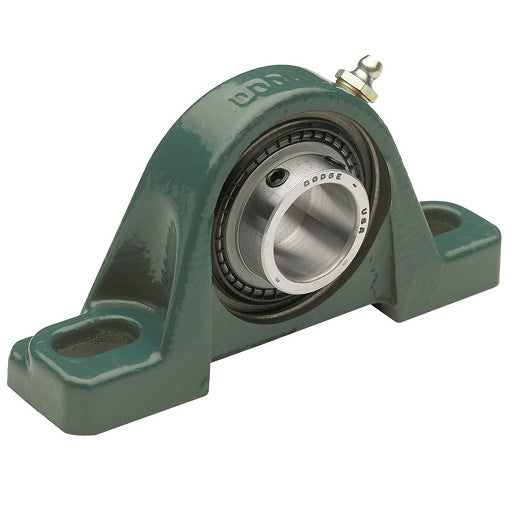

Dodge P2B-SC-107 Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SC-107 is a cast iron housing ball bearing unit designed with a two-bolt base. It is built for reliability in various applications, providing a strong support structure for rotating shafts. This pillow block bearing features a fixed design, ensuring stability and ease of installation.

• Constructed from durable cast iron
• Accommodates a shaft diameter of 1.438 inches
• Designed for dynamic and static load capacities of 5759 lbf and 3461 lbf respectively

Product Highlights

This product is suitable for machinery needing consistent support of rotating elements. Ideal for applications in manufacturing or processing environments where strength and durability are needed.

Product Information

Standard Information

• Brand: Dodge
• MPN: P2B-SC-107

Technical Specifications

• Lubrication: Grease
• Shaft Attachment: Setscrew
• Shaft Diameter: 1.438 inches
• Ball Bearing Series: 207 Series
• Max Speed: 3500 rpm
• Take-Up Frame Size: LD-20, TS-250
• Grease Name: Unirex N2
• Bolt to Bolt Max: 5.44 inches
• Insert Material: Steel
• Housing Construction: Solid
• Housing Material: Cast Iron
• Bolt Diameter: 0.5 inches
• Expansion Capability: Fixed
• No. of Bolts: 2
• Static Load Capacity: 3461 lbf
• Base to Center Height: 1.88 inches
• Greasable: Yes
• Dynamic Load Capacity: 5759 lbf
• Bore Length: 1.71 inches
• Bolt to Bolt Min: 4.68 inches
• Bearing Type: Ball Bearing
• Suitable for High Temperature: No
• Sensor Ready: Adapter Required
• Weight: 3.25 lb
• EAN or UPC: 782475113910
