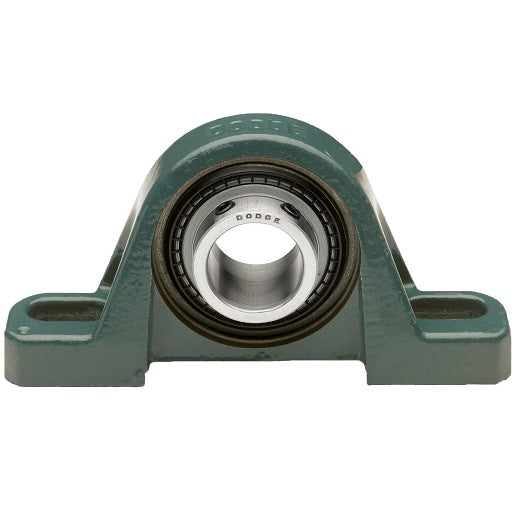

Dodge P2B-SC-104-NL Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-SC-104-NL is a cast iron housing ball bearing pillow block that features a two-bolt design. This component is essential for supporting rotating shafts, providing a reliable and sturdy solution in various machinery applications.

• Ball bearing series: 207 Series
• Static load capacity: 3461 lbf
• Dynamic load capacity: 5759 lbf

Product Highlights

This pillow block is built with a solid housing construction and is made of durable cast iron, designed to withstand wear over time while maintaining performance.

Product Information

Standard Information

• Brand: Dodge
• Part #: 102156948

Technical Specifications

• Ball Bearing Series: 207 Series
• Bolt to Bolt [Max]: 5.44 in
• Insert Material: Steel
• Speed [Max]: 3500 rpm
• Housing Material: Cast Iron
• Lubrication: Grease
• Standoff Housing: No
• Grease Name: Unirex N2
• Bolt Diameter: 0.5 in
• Static Load Capacity: 3461 lbf
• Suitable for High Temperature: No
• Shaft Attachment: Setscrew
• Expansion Capability: Fixed
• Base to Center Height: 1.88 in
• Bolt to Bolt [Min]: 4.68 in
• Bore Length: 1.71 in
• Take-Up Frame Size: LD-20, TS-250
• Shaft Dia.: 1.25 in
• Bearing Type: Ball Bearing
• Seal Type: Single-Lip Contact
• Suitable For Washdown: No
• Greasable: No
• Sensor Ready: Adapter Required
• Housing Construction: Solid
• No. of Bolts: 2
• Weight: 2.5 LB
• EAN or UPC: 782475537297
