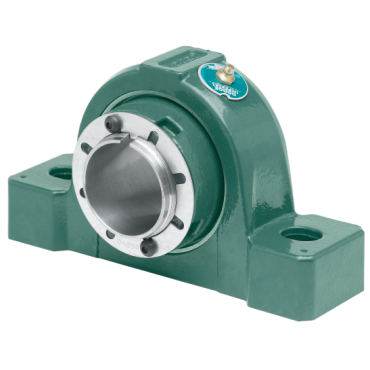

Dodge P2B-IP-203L Pillow Block Roller Bearing Unit - 2-3/16 in Bore Dia.

Product Description

The Dodge P2B-IP-203L is a pillow block roller bearing unit designed for effective handling of radial loads. This unit features a bore diameter of two and three-sixteenths inches, constructed from durable cast iron material for robust performance. The non-expansion bearing design ensures stability in various applications.

• Bore Diameter: 2-3/16 inches
• Housing Material: Cast Iron
• Sealing Type: Labyrinth

Product Highlights

The Dodge P2B-IP-203L is suitable for a wide range of industrial applications due to its strong construction and efficient lubrication mechanism.

Product Information

Standard Information

• Brand: Dodge
• MPN: P2B-IP-203L

Technical Specifications

• Bore Length: 3.03 inches
• Weight: 9.2 lbs
• Length: 10 inches
• Width: 4.4 inches
• Height: 6.1 inches
• Grease Type: MobilGrease XHP222
• Lubrication: Grease
• Type of Bearing: Spherical Roller
• Expansion Type: Non-Expansion Bearing (Fixed)
• Locking Device: Adapter Mounted
• Insert Material: Steel
• Shaft Attachment: Push-Pull Adapter
• Housing Dimensions: S-2000
• Country of Origin: US
• Base to Bore Centerline: 2.5000 inches
• Bolt Center to Center Length: 6.5600 to 6.9400 inches
