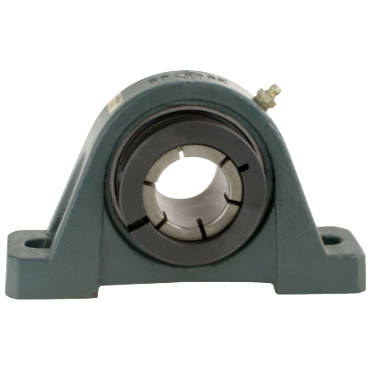

Dodge P2B-DLM-307 Pillow Block Ball Bearing Unit - 2-Bolt Base, 3-7/16 in Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)

Product Description

The Dodge P2B-DLM-307 is a durable pillow block ball bearing unit designed for reliable performance. This model features a two-bolt base, making installation straightforward. The unit is constructed of cast iron, providing strength and stability even under heavy loads.

• Constructed with a steel insert for enhanced durability
• Designed to support a shaft diameter of three and seven-sixteenths inches
• Capable of withstanding a dynamic load capacity of twenty-one thousand four hundred fifty-one pounds

Product Highlights

This pillow block bearing is ideal for various applications in industrial settings. It is suitable for environments where robust bearing units are necessary.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P2B-DLM-307

Technical Specifications

• Bore Diameter: 3-7/16 in
• Insert Material: Steel
• Housing Material: Cast Iron
• Number of Bolts: 2
• Dynamic Load Capacity: 21451 lbf
• Static Load Capacity: 16641 lbf
• Maximum Speed: 2000 rpm
• Take-Up Frame Size: LD-50
• Lubrication: Grease
• Expansion Capability: Fixed
• Sensor Ready: Adapter Required
• Bolt Center to Center Length: 10.32 to 11.62 in
• Standoff Included: No
• Weight: 30.95 LB
• Grease Name: Unirex N2
• Bore Length: 2.72 in
