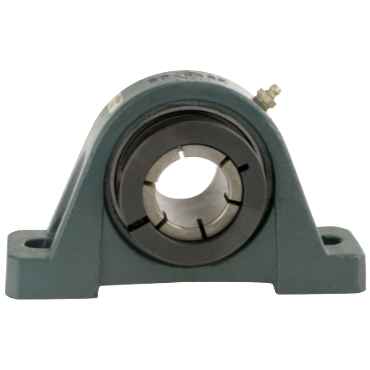

Dodge P2B-DLM-115 Pillow Block Ball Bearing Unit - 2-Bolt Base, 1-15/16 in Bore, Cast Iron Material, Non-Expansion Bearing (Fixed)

Product Description

The Dodge pillow block ball bearing unit P2B-DLM-115 is designed for reliable performance in various industrial applications. It features a two-bolt base for secure mounting and a bore size of one and fifteen-sixteenths inches. The unit is constructed from cast iron for durability and is a non-expansion bearing, providing fixed support.

• Ball bearing design for smooth operation
• Suitable for applications requiring a static load capacity of 6588 lbf
• Easy to mount with a two-bolt base

Product Highlights

This unit is ideal for use in conveyor systems, agriculture machinery, and general manufacturing processes due to its sturdy construction and reliable operation.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P2B-DLM-115

Technical Specifications

• Max Speed: 3500 rpm
• Weight: 8.85 lb
• Bearing Type: Ball Bearing
• Lubrication Type: Grease
• Dynamic Load Capacity: 9755 lbf
• Static Load Capacity: 6588 lbf
• Insert Material: Steel
• Base Height: 2.5 in
• Housing Material: Cast Iron
• Shaft Diameter: 1.938 in
