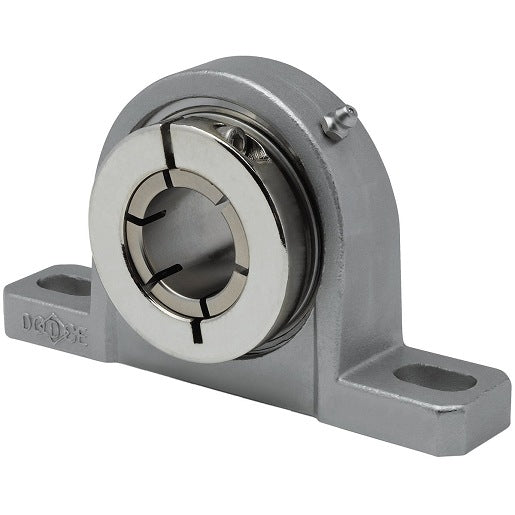

Dodge P2B-DLEZ-200-SHCR Stainless Steel Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-DLEZ-200-SHCR is a stainless steel housing ball bearing unit featuring a two-bolt base configuration. This unit supports a bore size of two inches and is designed for effective mounting in a variety of applications.

• Constructed with stainless steel housing for durability.
• Designed to accommodate a two-inch diameter shaft.
• Features a solid housing construction for robust performance.

Product Highlights

The P2B-DLEZ-200-SHCR offers reliable performance in both high cleanliness environments and standard industrial settings. This unit is suitable for washdown applications.

Product Information

Standard Information

• Brand: Dodge
• MPN: P2B-DLEZ-200-SHCR

Technical Specifications

• Base to Center Height: 2.25 in
• Bolt Diameter: 0.625 in
• No. of Bolts: 2
• Suitable For Washdown: Yes
• Shaft Attachment: Clamp Collar
• Insert Material: Plated Steel
• Bearing Type: Ball Bearing
• Expansion Capability: Fixed
• Housing Material: Stainless Steel
• Housing Construction: Solid
• Lubrication: Grease
• Bolt to Bolt [Max]: 6 in
• Bore Length: 2.01 in
• Shaft Dia.: 2 in
• Weight: 5.5 LB
• Compatible Grease: MobilGrease FM222
