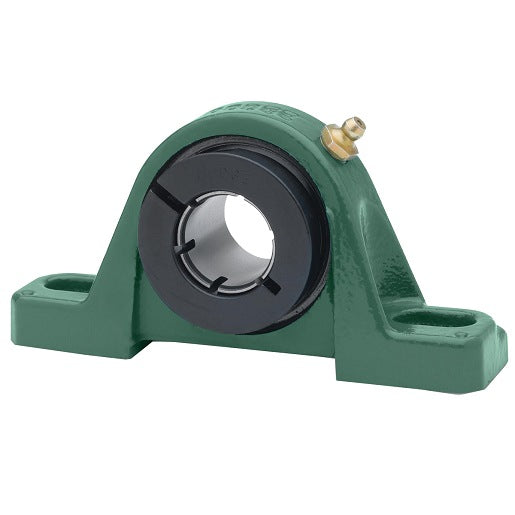

Dodge P2B-DL-215 Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-DL-215 is a cast iron housing ball bearing unit designed for robust applications. This product features a two-bolt mounting design, which provides ease of installation and stability in various environments. It is suitable for use in industrial applications where reliable and durable support is essential.

• Two-bolt design for secure mounting
• Steel insert material for enhanced performance
• Dynamic load capacity of 14,872 lbs

Product Highlights

This bearing unit is ideal for use in demanding conditions, offering reliable operation and longevity.

Product Information

Standard Information

• Brand: Dodge
• Part Number: P2B-DL-215

Technical Specifications

• Insert Material: Steel
• Bolt to Bolt [Min]: 8.5 inches
• Bolt to Bolt [Max]: 9.5 inches
• Bolt Diameter: 0.875 inches
• Dynamic Load Capacity: 14872 lbs
• Static Load Capacity: 11108 lbs
• Bore Length: 2.4 inches
• Shaft Diameter: 2.938 inches
• Speed [Max]: 3000 rpm
• Lubrication: Grease
• Greasable: Yes
• Housing Material: Cast Iron
• Housing Construction: Solid
• No. of Bolts: 2
• Expansion Capability: Fixed
