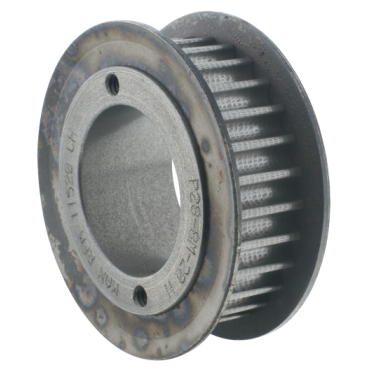

Dodge P288M30H High Torque Drive Sprocket

Product Description

The Dodge P288M30H is a high torque drive sprocket designed for various industrial applications. It features a robust construction with a specification of 8 mm belt pitch and a 30 mm belt width, making it suitable for heavy-duty tasks.

• High torque capacity
• Requires H bushing with a bore range of three-eighths to one and three-sixteenths inches
• Quiet and low-maintenance operation

Product Highlights

This sprocket is designed for applications including agitators, mixers, conveyors, and machine tools. It provides smooth operation with minimal maintenance needs.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946265
• UOM: each
• Availability: In Stock

Technical Specifications

• Outside Diameter: 2.759 inches
• Sprocket Width: 1.5 inches
• Type: E1F
• Bushing Type: Split Taper
• Finished Bore: N/A
• Bushing Series: H
• Bore Type: Taper-Lock and QD Bushed
• Number of Teeth: 28
• Bore Range [Max]: 1.1875 inches
• Pitch Diameter: 2.807 inches
• Belt Width: 30 mm
• Belt Pitch: 8 mm
• Bore Range [Min]: 0.375 inches
• Weight: 1.44 lb
• EAN or UPC: 782475265459
