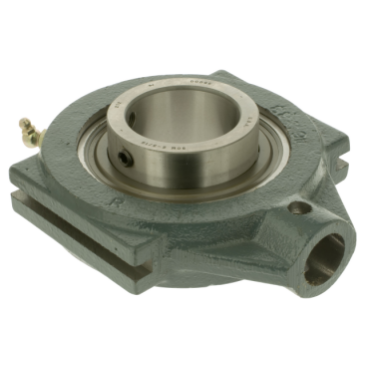

Dodge NSTUSCM203 Ball Bearing Take-Up Unit

Product Description

The Dodge NSTUSCM203 is a ball bearing take-up unit designed for various applications including air handling, food and beverage, and automotive chemical processing. Its cast iron housing ensures durability and long-lasting performance. This take-up unit features a slot width of five sixteenths of an inch, making it suitable for narrow slot installations.

• Cast iron housing for durability
• Precision hardened and honed inner and outer rings
• DualGuard sealing system for enhanced protection

Product Highlights

This unit is ideal for applications requiring reliable bearing performance and minimal maintenance. It offers easy insert replacement without the need for additional fittings.

Product Information

Standard Information

• Brand: Dodge
• MPN: NSTUSCM203

Technical Specifications

• Weight: 8.01 lb
• Overall Length: 6.6875 in
• Overall Height: 5.75 in
• Slot Width: 0.3125 in
• Shaft Diameter: 2.1875 in
• Seal Type: Contact Seals
• Housing Material: Cast Iron
• Lubrication: Relubricatable
• Take-Up Frame No.: NS415
• Between Frame Width: 4 15/16 in
• Shank Slot Length: 1.281 in
• Length Through Bore: 1.98438 in
• Shank Height: 1 5/8 in
• Shank End to Center of Shaft: 3 7/8 in
• Grade: 10 balls for quieter operation
