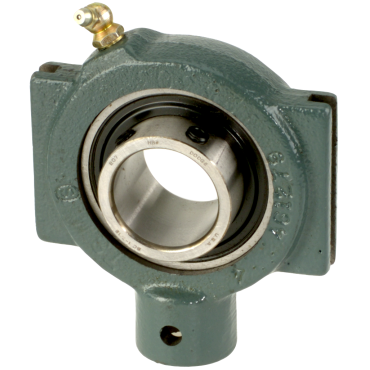

Dodge NSTUSC207 Ball Bearing Take-Up Unit

Product Description

The Dodge NSTU-SC-207 is a reliable ball bearing take-up unit designed for various applications. This unit is suitable for air handling, food and beverage, and automotive industries, among others. Its durable cast iron housing ensures longevity while effectively resisting wear.

• Precision hardened and honed rings for wear resistance
• Built-in sealing system protects against contaminants
• Easy insert replacement without additional hardware changes

Product Highlights

This take-up unit features a unique anti-rotation pin for quick insert swaps and a specialized grease-retaining cage that maintains optimal lubrication. With its versatile design, it can accommodate narrow slot setups.

Product Information

Standard Information

• Brand: Dodge
• MPN: NSTU-SC-207

Technical Specifications

• Bearing Insert: INS-SC207
• Take-Up Frame No.: NS415
• Length Through Bore: 1.98438 in
• Shank Slot Length: 1 9/32 in
• Housing Material: Cast Iron
• Slot Width: 0.3125 in
• Seal Type: Contact Seals
• Take-Up Types: Narrow Slot
• Shank Height: 1 5/8 in
• Locking Device: Setscrew Locking Collar
• Between Frame Width: 4 15/16 in
• Overall Length: 6.6875 in
• Overall Height: 5.75 in
• Shaft Diameter: 2.4375 in
• Weight: 7.56 LB
• EAN or UPC: 782475115556
