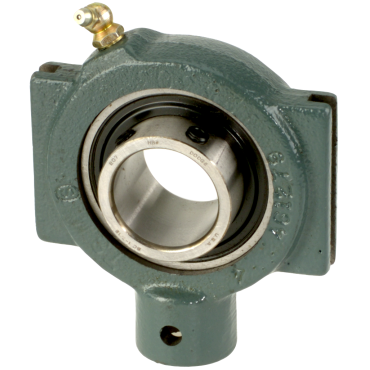

Dodge NSTUSC106 Ball Bearing Take-Up Unit

Product Description

The Dodge NSTUSC106 is a ball bearing take-up unit designed for various industrial applications. This unit features a cast iron housing for durability. It is suitable for use in air handling, food and beverage, and automotive chemical processing environments.

• Precision hardened inner and outer rings
• DualGuard sealing system
• Optimized design for grease retention

Product Highlights

This take-up unit provides reliable performance and ease of maintenance in demanding applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: NSTUSC106

Technical Specifications

• Overall Height: 4.125 inches
• Take-Up Frame Number: NS308
• Slot Length: 2.5 inches
• Screw Diameter: 0.75 inches
• Bearing Design: Non-Expansion
• Overall Length: 4.5 inches
• Shank Slot Length: 15/16 inches
• Seal Type: Contact Seals
• Between Frame Width: 3.5 inches
• Shank Height: 1.375 inches
• Shaft Diameter: 1.375 inches
• Lubrication: Relubricatable
• Slot Width: 0.25 inches
• Bearing Insert: INS-SC106
• Housing Material: Cast Iron
• Weight: 2.6 lbs
