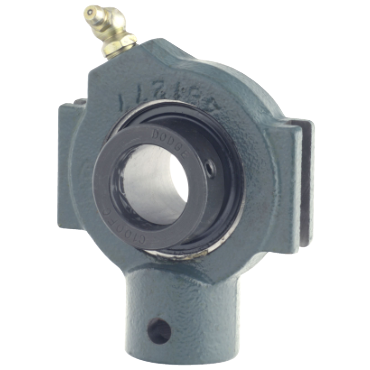

Dodge NSTU-SXR-100 Ball Bearing Take-Up Unit

Product Description

The Dodge NSTU-SXR-100 is a high-performance ball bearing take-up unit designed for rugged applications in various industries.

• Durable cast iron housing
• Precision-hardened inner ring for shock absorption
• DualGuard sealing system for enhanced protection

Product Highlights

This unit features a patented Maxlife cage that maintains grease pockets for efficient lubrication, minimizing washout and ensuring cooler operation.

Product Information

Standard Information

• Brand: Dodge
• MPN: NSTU-SXR-100

Technical Specifications

• Type: Ball Bearing
• Inch/Metric: Inch
• Take-Up Types: Narrow Slot
• Shank Height: 1 3/8 in
• Overall Height: 3.125 in
• Shaft Dia.: 1 in
• Seal Type: Contact Seals
• Housing Material: Cast Iron
• Shank End to Center of Shaft: 2 3/16 in
• Shank Slot Length: 7/8 in
• Lubrication: Relubricatable
• Screw Diameter: 3/4 in
• Locking Device: Eccentric Locking Collar
• Take-Up Frame No.: NS210
• Slot Width: 0.25 in
• Slot Length: 1 1/2 in
• Bearing Design: Non-Expansion
• Between Frame Width: 2 5/8 in
• Length Through Bore: 1.75 in
• Overall Length: 3.5625 in
• Weight: 1.56 LB
• EAN or UPC: 782475117178
