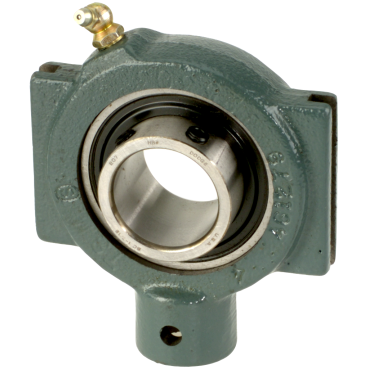

Dodge NSTU-SC-104 Ball Bearing Take-Up Unit

Product Description

The Dodge NSTU-SC-104 is a ball bearing take-up unit designed for various applications. This unit features a bore diameter of one and one-fourth inches and a narrow slot design. With a cast iron housing, it provides strong support and durability for industrial uses.

• Precision hardened inner and outer rings
• DualGuard sealing system for contamination protection
• Grade 10 balls to reduce vibration and noise

Product Highlights

This unit is suitable for air handling, food processing, automotive, and packaging applications.

Product Information

Standard Information

• Brand: Dodge
• MPN: NSTU-SC-104

Technical Specifications

• Bearing Insert: INS-SC104
• Slot Width: 0.25 in
• Seal Type: Contact Seals
• Length Through Bore: 1.53125 in
• Bearing Design: Non-Expansion
• Type: Ball Bearing
• Take-Up Frame No.: NS308
• Take-Up Types: Narrow Slot
• Between Frame Width: 3.5 in
• Locking Device: Setscrew Locking Collar
• Shank Slot Length: 15/16 in
• Overall Height: 4.125 in
• Overall Length: 4.5 in
• Shaft Diameter: 1.25 in
• Shank End to Center of Shaft: 2 11/16 in
• Housing Material: Cast Iron
• Lubrication: Relubricatable
• Slot Length: 2.5 in
• Shank Height: 1.375 in
• Screw Diameter: 0.75 in
• Weight: 2.71 LB
• EAN or UPC: 782475115495
