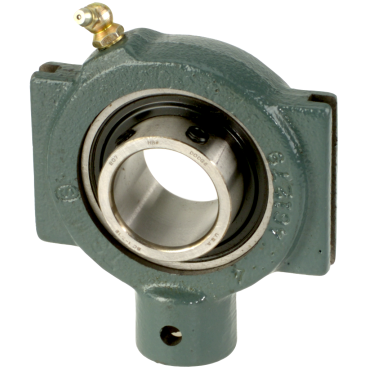

Dodge NSTU-SC-103 Take-Up Ball Bearing Unit - Side Mount 1.1875 in Bore

Product Description

The Dodge NSTU-SC-103 is a ball bearing take-up unit designed for side mounting. It features a bore diameter of one and three-sixteenths inches and is constructed with a cast iron housing. This unit is ideal for various applications such as air handling, food and beverage processing, and automotive chemical environments.

• Inner and outer rings are precision hardened for durability.
• Features a DualGuard sealing system for enhanced protection against contaminants.
• Designed for ease of maintenance with an anti-rotation pin.

Product Highlights

This take-up unit provides reliable performance and reduces maintenance requirements in various industrial settings.

Product Information

Standard Information

• Brand: Dodge
• Part Number: NSTU-SC-103

Technical Specifications

• Bearing Design: Non-Expansion
• Slot Width: 0.25 inches
• Lubrication: Relubricatable
• Shank Slot Length: 15/16 inches
• Type: Ball Bearing
• Take-Up Frame No.: NS308
• Shank Height: 1 3/8 inches
• Slot Length: 2 1/4 inches
• Between Frame Width: 3 1/2 inches
• Length Through Bore: 1.39063 inches
• Screw Diameter: 3/4 inches
• Shaft Diameter: 1.1875 inches
• Take-Up Types: Narrow Slot
• Seal Type: Contact Seals
• Housing Material: Cast Iron
• Overall Height: 4.125 inches
• Overall Length: 4.3125 inches
• Weight: 2.3 LB
