Dodge NS407X9TUFR | Side Mounted Take-Up Frame | 9 in Travel | 19 1/8 in Length | 6 1/2 in Width

Product Description

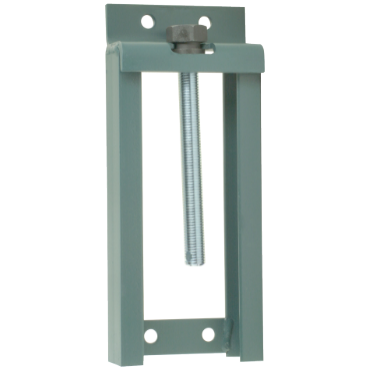

The Dodge NS407X9TUFR is a side mounted take-up frame designed for use with belt and chain conveyors. This frame has a travel of nine inches, making it suitable for various conveyor applications. The dimensions of the frame are 19 1/8 inches in length, 6 1/2 inches in width, and a height of 2 inches.

• Travel of nine inches
• Overall dimensions of 19 1/8 inches in length and 6 1/2 inches in width
• Designed for belt and chain conveyors

Product Highlights

This take-up frame provides efficient adjustment of conveyor tension, ensuring smooth operation. Its robust design allows for reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Dodge
• MPN: NS407X9TUFR

Technical Specifications

• Travel: 9 inches
• Bolt Hole Spacing - Length: 17 3/8 inches
• Frame Length: 19 1/8 inches
• Overall Height: 2 inches
• Bolt Hole Spacing - Width: 2.75 inches
• Flange Thickness: 5/16 inches
• Base Width: 6 1/2 inches
• Weight: 13.16 pounds
• EAN or UPC: 782475019090
