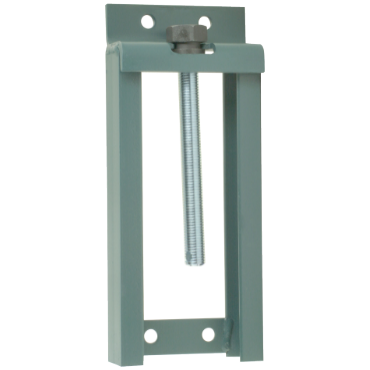

Dodge NS308X12TUFR Side Mounted Take-Up Frame 12 Travel

Product Description

The Dodge NS308X12TUFR is a side-mounted take-up frame designed for efficient operation in belt and chain conveyor systems. This product is engineered to provide stability and support for various applications.

• Travel length of twelve inches
• Dimensions of nineteen and five-eighths inches in length, four and eleven-sixteenths inches in width, and one and one-half inches in height
• Compatibility with standard belt and chain conveyors

Product Highlights

This take-up frame is ideal for maintaining tension and alignment in conveyor systems, ensuring smooth operation and minimizing wear and tear.

Product Information

Standard Information

• Brand: Dodge
• MPN: NS308X12TUFR

Technical Specifications

• Overall Height: 1.5 inches
• Frame Length: 19.625 inches
• Base Width: 4.6875 inches
• Travel: 12 inches
• Bolt Hole Spacing - Width: 2.25 inches
• Bolt Hole Spacing - Length: 18.125 inches
• Flange Thickness: 0.25 inches
• Weight: 7.74 pounds
• EAN: 782475019045
