Dodge NS-308X6-TUFR Take-Ups

Product Description

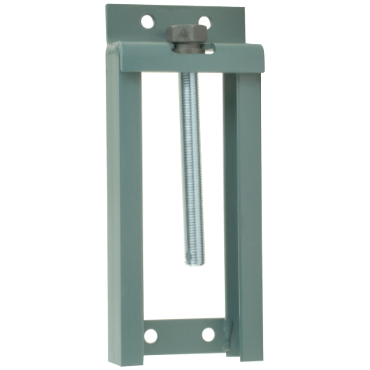

The Dodge NS-308X6-TUFR is a side mounted take-up frame designed for belt and chain conveyor applications. This product features a travel length of six inches, making it suitable for various industrial settings. It measures thirteen and five-eighths inches long, four and eleven-sixteenths inches wide, and one and a half inches high.

• Designed for use with belt and chain conveyors
• Mounting options include side installation
• Constructed for reliable performance

Product Highlights

This take-up frame supports effective tensioning and alignment of conveyor belts.

Product Information

Standard Information

• Brand: Dodge
• MPN: NS-308X6-TUFR

Technical Specifications

• Travel: 6 inches
• Flange Thickness: 1/4 inches
• Bolt Hole Spacing - Length: 12 1/8 inches
• Base Width: 4 11/16 inches
• Frame Length: 13 5/8 inches
• Overall Height: 1.5 inches
• Bolt Hole Spacing - Width: 2.25 inches
• Weight: 5.57 pounds
• EAN or UPC: 782475019038
