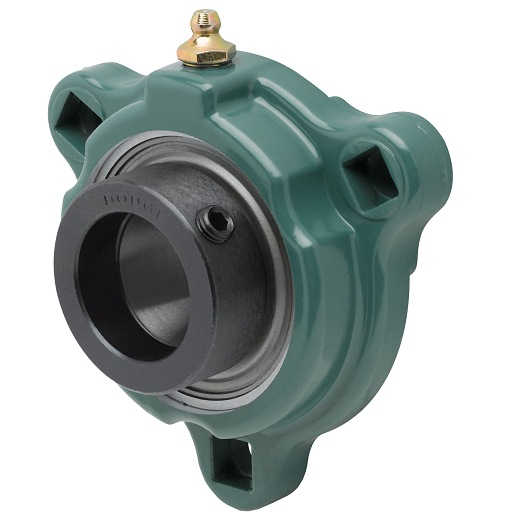

Dodge LFSXV103 Light Duty Alloy 3-Bolt Flange Unit

Product Description

The Dodge LFSXV103 is a light duty alloy 3-bolt flange unit designed for various industrial applications. This unit features a shaft diameter of one point one eight eight inches. The solid housing construction and alloy material provide durability and strength in operations.

• 1.188 inch Shaft Diameter
• 3-Bolt Flange Design
• Solid Alloy Housing Construction

Product Highlights

This bearing unit is ideal for light duty applications. It includes an eccentric collar locking device and is greasable for ease of maintenance.

Product Information

Standard Information

• Part Number: LFSXV103
• Brand: Dodge

Technical Specifications

• Insert Material: Steel
• Duty Type: Light Duty
• Locking Device: Eccentric Collar
• Sensor Ready: Adapter Required
• Grease Name: Unirex N2
• Bearing Type: Ball
• Bolt Circle Diameter: 3.56 inches
• Lubrication: Grease
• Ball Bearing Series: 206 Series
• Flange Type: 3-Bolt Flange
• Bolt Diameter: 0.406 inches
• Housing Material: Alloy
• Expansion Capability: Fixed
• Shaft Diameter: 1.188 inches
• Housing Construction: Solid
• Bore Length: 1.41 inches
• Weight: 1.5 pounds
• EAN or UPC: 782475753499
